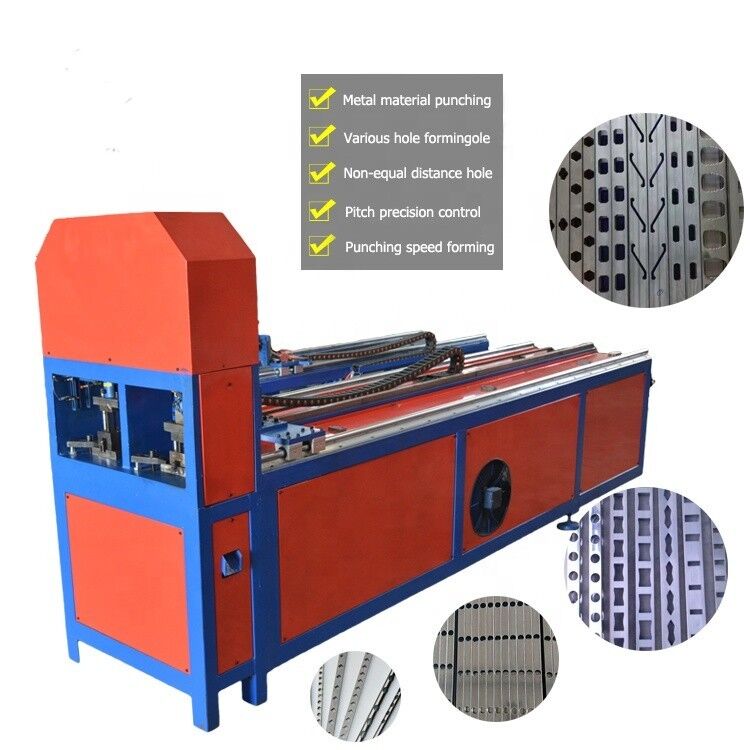

Square Pipe Punching Machine Pipe Punching Cutting Machine 7.5kw 6700*880*1740mm

6700*880*1740mm Square Pipe Punching Machine With High Efficiency

Punching and cutting Machine for the Manufacture of Storage Rack Square pipe Post

The steel Pipe punching and cutting machine change the traditional production way, the most advantage is to increase the production efficiency too much, so that to reduce the labor cost. With its high efficiency, safety and reliability, it is very popular in the present market. The machine is controlled by PLC servo motor driving system, cut to length size is accurate.

Main Parameters- Square Pipe Shelving Upright Machine

- Suitable Raw material: GI steel sheet, Middle carbon steel sheet,

2-3mm× L; σs≤260Mpa;

- Feeding model: By servo motor

- Max speed: 60 times/min

- Maximum Stroke of Punch:100mm

- Cylinder Diameter:100mm

- Maximum Pressure of Hydraulic System: 20Mpa

- Hydraulic station power 4kw

- Total power: 7.5kw

- Cutting mode: Automatic control, cut to length

- Hole Location Accuracy: ±0.5mm

- Power: 380V/3ph/50Hz (or according to the buyer's requirement)

- Machine dimension: 6700*880*1740mm

- Machine weight: 1.8Tons

Storage Rack Pipe Post
