| Brand Name: | Jack-Aiva |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7 days |
| Payment Terms: | T/T L/C |

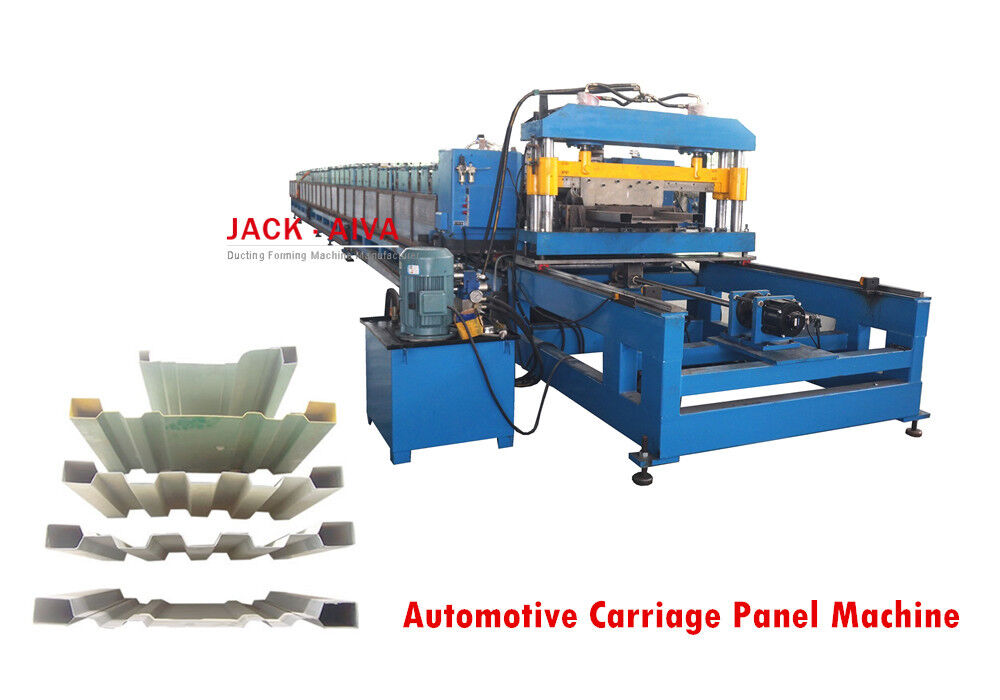

Automotive Carriage Panel Production line, Roll Forming Machine
Brief Introduction - Roll forming machine for Automotive carriage panel or guard sheet
The field of automotive cold-formed molding equipment are mainly including as following, auto bumper or frame part profile equipment, windows guides, door trim, A-pillars, B-pillars, other automotive parts, rail car doors and windows, car beam shaping devices, and related auxiliary equipment auxiliary group and the three-dimensional pulled equipment, special cutting equipment. The truck carriage side panel can be roll formed by our line at one time. it can be customized prepared according to client drawing, various profile width can be possible by the same line and no need to change any other parts. also it can adopt cassette style roll forming unit technology, the whole line is consisted of de-coiler, roll forming machine, straightening device (including the straightening and bending parts), Stretch Bending machine, cutting device, electrical system.
Un-coiler→ guiding → leveling → Roll forming → Auto welding → tracing cutter → run out table
Main Parameters- Roll forming machine for Automotive carriage panel or guard sheet
| Item |
Content
|
| Profile |
Truck side panel or side guard sheet
|
| Material: |
Galvanized steel sheet
|
| Thickness of raw material: |
1.0 -1.5mm
|
| Station quantity |
26 sets
|
| Forming roller |
GCR15, hardness HRC58-60 after treatment
|
| Main shaft |
Ф95mm
|
| Main motor power: |
30KW + 15kw*2
|
| Hydraulic motor power: |
4kW
|
| Cutter |
Servo motor driving model
|
| Working speed: |
1-15m/min
|
| Capacity Length: | up to 9999 mm (optional) |
| Control system: |
PLC control, The designing of metal deck forming machine is aided and optimized by computer.
|
| Voltage: |
380V 3 phase 50Hz or as per the customers' requirements
|
| Total weight: |
about 15MT
|
| Line size (Lx w x h) | 15000 mm×1500 mm×1100 mm |
Automotive carriage panel or guard sheet
We are one of the most professional suppliers in this automotive components roll forming machinery industry in china.
We had ever designed and supplied related automotive roll forming machines for the Toyota Corp., Honda Co., Chery and other relative spare parts suppliers and other related Chinese agriculture automobile companies, etc.
Custom roll formed profiles in this automobile industry are welcome!
