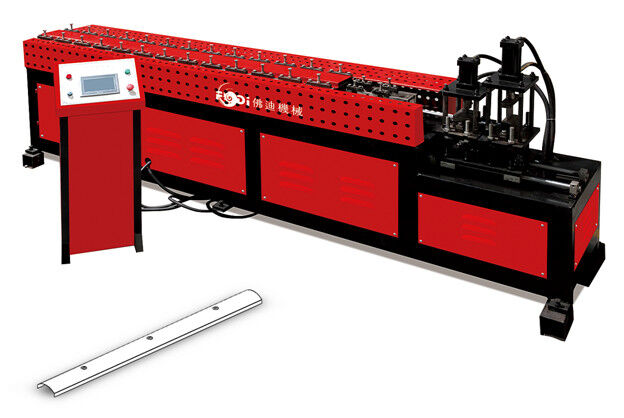

7KW HVAC Duct Machines Spring Leaf Spring Lead Roll Forming Machine

Fire Damper Spring leaf Machine, Spring lead Roll Forming Machine

Brief Introduction - Fire Damper Spring leaf Roll Forming Machine

This roll forming machine is a special for the production of fire damper spring leaf, stainless steel sealing strip, the line consists of a manual discharge rack, a cold roll forming machine and hydraulic punching holes and cutter. The whole machine adopts full computer PLC control and touch screen operation. It can be set to any size according to the operation requirements. It can also be punched on the spring leaf according to the processing requirements, and there is a 4.2mm connecting rod hole. The production line has a maximum processing speed of 15 m/min, a length error of ±0.5 mm, a diagonal error of ±0.8 mm, and a standard rack load of 2T, which can be matched according to customer requirements.

The blade forming machine is suitable for use in the construction site or fire damper production plant. The maximum size can be based on the customer.

Technology specification of fire damper blade forming machine

The fire damper blade roll forming machine is designed according to 0.2mm thickness stainless steell. The VCD damper frame profile production line is consisted of uncoiler (manual), leveler roll form machine, hydraulic punching and cutter, hydraulic system, electrical control system, etc.

Decoiler --- punching holes --- Roll forming --- cutting --- finished products

Main parameters of Fire Damper Blade Forming Machine

Fire Damper spring leaf

The Fire Damper Spring leaf by the Roll Forming Machine is the stainless steel sealing strip. The normal Fire Damper spring leaf size is 0.2mm thickness, and the standard width is 55mm.

Customized damper can be designed according to client drawing or sample.
