| Brand Name: | Jack-Aiva |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 70 working days |
| Payment Terms: | T/T L/C |

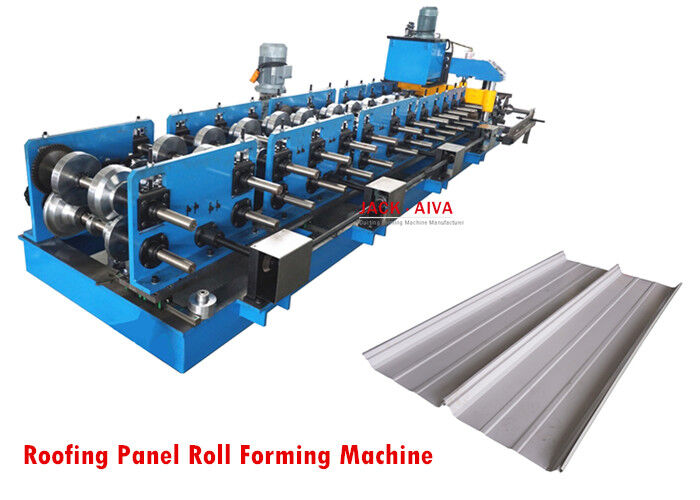

Steel Ribbed Roofing Panel Roll Forming Machine | Metal Roof Sheet Making Machine
Roll Forming Machine for production the Roof panel with stand seaming
Our manufacturer is Specialist in roll forming design for the manufacture the production of building construction, cover the range for production metal roofing and wall, various trapezoidal profiles can be custom manufactured. The complete roll forming lines for roofing & cladding lines will be supplied. Steel roofing and steel walls are all manufactured on roll forming machine. We deigned the single, double layer and cassette type trapezoid roof panel production lines according to clients’ request. The special designed ribs on can increase the roof panel intensity too much, to obtain the high quality steel roof & wall cladding panels.
Machine Components- Roll Forming Machine for Roofing Panel with standing seam
This joint-hidden steel sheet forming Machine including Roll-forming tools and other equipment, such as for example: unwinding of many types, feeding, straightening, holes punching and perforation or cutting and final packing. All of this equipment is manufactured to order according to the requirements and concepts of the customer. The normal technology for our steel wall & roof panel roll forming machines is as following,
De-coiling - Coil sheet guiding & feeding - Roll forming - cut to length - stacking production
Technology specification- Roll Forming Machine for Roofing Panel with standing seam
| Item | Content |
| Raw material thickness | 0.3-0.7mm |
| Working speed: | 12-15m/min |
| Roll station: | 23 stations |
| Hydraulic station power: | 4kw |
| Hydraulic pressure: | 10-12Mpa |
| Main motor power: | 5.5kw |
| Controlling system: | PLC |
| Total weight: | about 10,000kg |
| Size | 10500×1500×1200mm |
Metal Roof with standing seam
One roll forming machine only can produce one profile. The roof panel Rib profile has an excellent strength weight ratio, durable and cost effective. This corrugated steel sheet products are widely used for commercial and industrial applications like factories, shop lots and apartments. Besides being used as metal roofs, Rib is equally suitable for use as cladding and fascia or even hoarding. The available materials are including colored steel, GI steel coil, aluminum, or the other metal suitable for cold forming technology.
Custom roll formers request the sectional profile with sizes, so that we can confirm the rib height, effective cover, roof pitch, etc. and send you the exact quotation.
Custom profiles are welcome! The following is some corrugated panel roofs profiles with standing seam for your reference.
For information on metal roof sheets profiles by our roll-forming mills, please contact with us!
