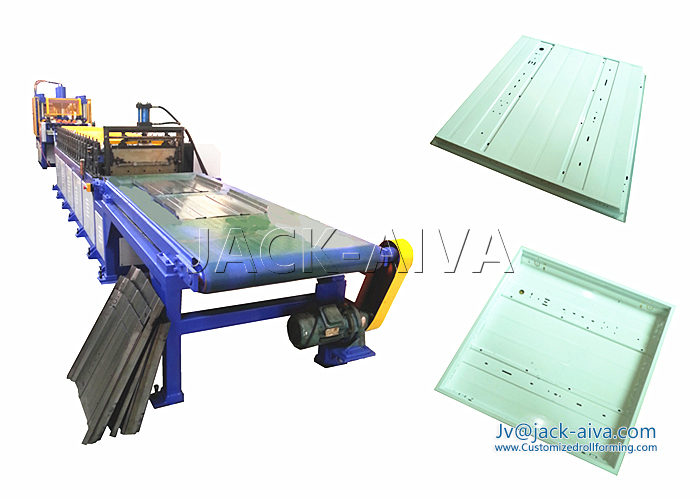

Lighting Fixture Roll Forming Line


 Cold Metal Roll Forming Line for Production Lighting Industry
Our Lighting Fixture production line is an expert machine specialized in lighting fixture industry. The light fixture profile roll forming Line is consisted uncoiler, leveling device, Hydraulic punching & Notching device, Main roll forming machine, Hydraulic cutter, and run out table, etc.
We design the roll forming line that achieve critical cosmetic surfaces and production efficiency can be met your requirements. In-line precision punching and notching make the designs assembly-ready. See us for manufacturing equipment to produce everything from under-counter lighting to commercial and industrial florescent light fixture components.

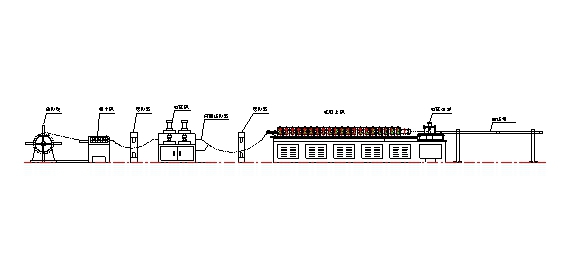

Lighting Fixture production Line flow


 Main Parameters - light fixtures Roll forming Line
Line structure Portal-type frame style: 45# steel
Forming Roller Stations: 20 Stations
Forming Roller shaft: ¢57mm, 40Cr, quenching, treating
Forming rollers CR12MOV, quenching, hardness HRC58-60º
Forming Speed: 0-8m / min
Main motor: 11kw
Hydraulic station motor 15kw
Suitable raw material: Q235A galvanized steel sheet
Driving mode: Chain
Cutting mode: automatic punching cutting style
Blade material: CR12MOV, quenching and treating
Control mode PLC

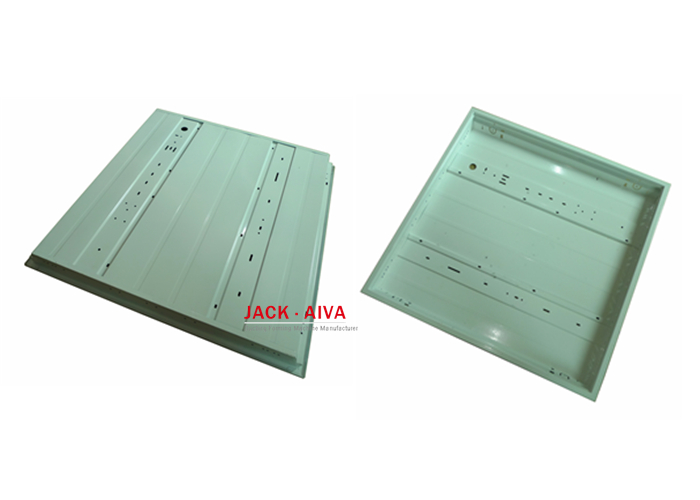

 Lighting Fixtures profile
The Lighting fixture manufacturing roll forming Line and our related production equipment produce fluorescent channels, troffer, reflectors, louvers, blades, and covers from gloss- painted steel and highly polished anodized aluminum.
The main process of light fixtures is completed by the Roll forming machine, both ends process by separate hydraulic press machine. The following is the profile, the custom lighting fixtures profile is welcome!
