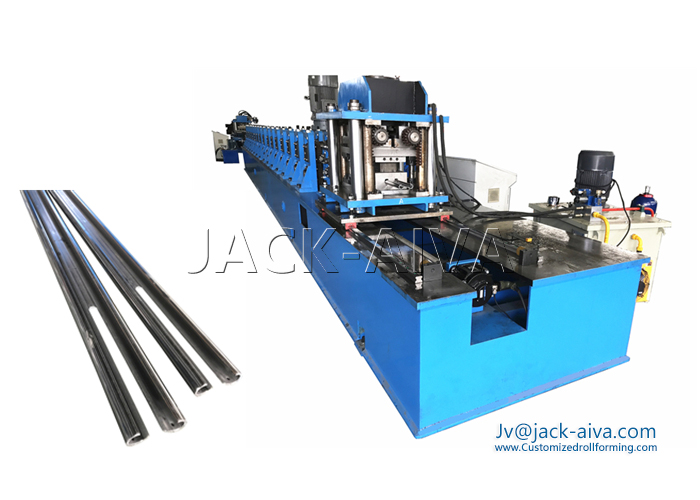

Sigma Post Roll Forming Machine
 Expressway guardrail post roll forming Line for production Sigma Pillar
Sigma pillar as an important member of Post guardrails system is widely adopted. The roll-formed galvanized guardrails Post feature the latest advancements in highway safety barrier technology to ensure maximum strength and long-term durability of our products.
Expressway Guardrail sigma pillar Forming Machine is an expert machine specialized in guard rail system.

 Technology Specification- Expressway Guardrail Sigma Post Roll Forming Line

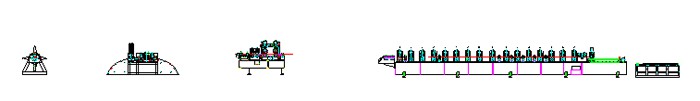

Decoiler (3 tons) -  leveler - Hydraulic press machine (2 set, punching moulds letters & round holes) - Roll Forming - Tracing cutter & punching (slot holes) - Unloading Table (Without power, 2m length) - completed product



 Main Parameters- Expressway guardrail post roll forming machine
- Roll Formed Profile Type Guard Rail post of Sigma pillar
- GI steel strip thickness 3.5mm - 4.2mm
- Raw material width 228mm (can be custom prepared)
- Line structure Portal-type frame style: 45# steel
- Forming Roller Stations: 15 Stations
- Forming Roller shaft: ¢100mm, 45#, treating
- Forming rollers material:  GCr15, quenching, hardness HRC56-62º
- Forming Speed: 12 meters / min (suggestion speed: 7-8m/min)
- Main motor: 45kw
- Suitable raw material: Q235A galvanized steel sheet
- Driving mode: Gearing box
- Cutting mode: automatic punching cutting style
- Blade material: Cr12, quenching and treating
- Control mode PLC & Touch screen

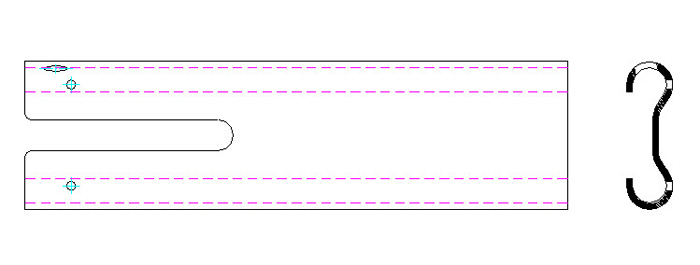

 Expressway guardrail Sigma Pillar profile
The following is the typical sigma pillar guardrail post, still another C post for expressway guardrail system is also popular in the present market. We can custom design the roll forming machine according to client request. .


TAG: Expressway Guardrail Post Roll Forming Machine, Sigma Pillar, Expressway Guardrail Sigma Pillar
